The bell curve is the visual signature of a normal distribution, one of the most fundamental patterns in statistics. It appears when measuring phenomena as diverse as human intelligence, manufacturing tolerances, biological traits, and financial returns. The characteristic symmetrical shape reflects how variation naturally organizes itself around a central tendency in many real-world systems.
Visualizing this distribution transforms abstract statistical concepts into concrete understanding. When you see how changing the mean shifts the entire curve, or how adjusting the standard deviation makes it wider or narrower, the mathematical relationships become intuitive. This interactive tool allows you to input any mean (μ) and standard deviation (σ) to generate a precise bell curve, helping you develop deeper insight into how data behaves under normal distribution assumptions.
Understanding these patterns is essential for anyone working with data, from students learning foundational statistics to researchers interpreting experimental results.
What Is a Bell Curve?
A bell curve is the graphical representation of a normal distribution, named for its distinctive bell-like shape. Mathematically, it’s defined by the Gaussian probability density function, but visually, it’s simply a smooth, symmetrical curve that peaks at the center and tapers off equally on both sides.
The peak sits exactly at the mean—the average value of the dataset. This reflects the statistical reality that in normally distributed data, the most common values cluster around the average. As you move away from this center point in either direction, the curve descends, indicating that extreme values occur with decreasing frequency.
The width of the curve depends entirely on the standard deviation. A small standard deviation produces a tall, narrow bell—indicating that most values stay very close to the mean. A large standard deviation creates a short, wide bell—showing that values are more scattered across a broader range. This visual distinction makes the curve an invaluable tool for comparing datasets at a glance.
Real-world examples abound. Adult heights within a population follow this pattern closely. Standardized test scores are often designed to conform to it. Measurement errors in precision instruments cluster around zero in a bell shape. Even natural variations in agricultural yields, blood pressure readings, and reaction times tend toward this distribution.
How This Bell Curve Generator Works
The embedded tool above transforms your statistical parameters into a visual representation. The process is straightforward but powerful.
Input the mean (μ): This value determines where the center of your bell curve sits on the horizontal axis. If you enter 100, the peak appears at 100. Change it to 500, and the entire curve shifts rightward to center on 500. The mean controls position, not shape.
Input the standard deviation (σ): This parameter controls how spread out the curve appears. Enter a small value like 5, and you’ll see a steep, narrow curve—most data points sit within a tight range of the mean. Increase it to 50, and the curve flattens and widens—data points are distributed across a much broader span.
Watch the curve update: As you adjust these parameters, the graph recalculates instantly. The smooth curve always maintains its characteristic bell shape, but its position and proportions change according to your inputs.

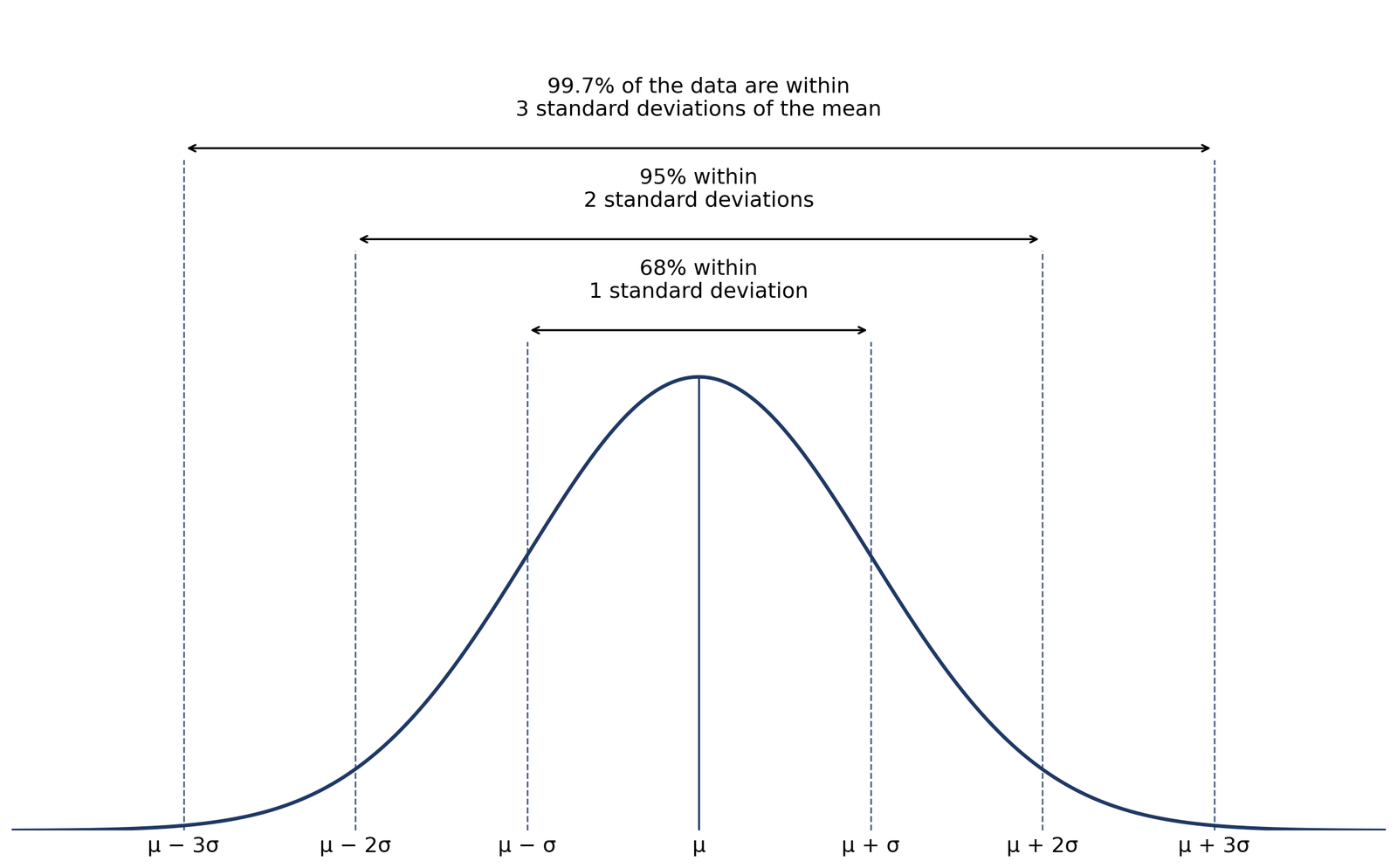

Interpreting the markings: The tool typically highlights key boundaries at one, two, and three standard deviations from the mean (±1σ, ±2σ, ±3σ). These markers connect directly to the empirical rule calculator, which shows that approximately 68% of data falls within ±1σ, 95% within ±2σ, and 99.7% within ±3σ. Seeing these zones shaded on the curve helps you understand what these percentages mean in visual terms.
This dynamic interaction builds intuition that static diagrams cannot provide. You can experiment with extreme parameters, compare different distributions side by side, and see immediately how the mathematical relationships translate into graphical patterns.
Understanding the Shape of the Normal Distribution
The bell curve’s shape is not arbitrary—it reflects the underlying probability structure of the normal distribution.
The curve peaks at the mean because this is the most probable value. In a normal distribution, the likelihood of observing a value decreases continuously as you move away from the center. The curve’s height at any point represents probability density: taller sections indicate regions where values are more concentrated.
This is why values far from the mean occupy the thin “tails” of the distribution. A student scoring three standard deviations above the class average hasn’t just done well—they’ve achieved something statistically rare, occurring in less than 1% of cases. The visual thinness of that tail section communicates this rarity instantly.
The relationship between curve width and standard deviation follows precise mathematics. A distribution with twice the standard deviation doesn’t just spread twice as wide—it also becomes half as tall at the peak, because the total area under the curve must always equal 1 (representing 100% probability). This inverse relationship ensures that probability is conserved: wider spread means lower density at any given point.
Area under the curve corresponds to probability. The region between any two points on the horizontal axis contains a certain percentage of all observations. This is why statisticians talk about “the area between 90 and 110” when they mean “the probability of observing a value between 90 and 110.” The visual representation makes these abstract probabilities tangible.
Why Visualizing a Bell Curve Matters in Statistics
Numbers alone rarely convey the full story of a dataset’s behavior. Visualization bridges the gap between mathematical formalism and intuitive understanding.
When you plot a bell curve, patterns emerge that raw statistics might obscure. You can immediately see whether a distribution is tightly clustered or broadly dispersed. You can compare two distributions visually to assess which has greater variability or whether their means differ substantially. These insights inform decisions about data quality, experimental design, and statistical significance.
The curve also provides critical context for Z-scores, which measure how many standard deviations a value sits from the mean. A Z-score of 2 might seem like just a number, but when you see it positioned on the bell curve—far out in the tail, beyond 95% of all values—its meaning becomes clear. This visual anchoring prevents misinterpretation.
For students learning the empirical rule, seeing the 68-95-99.7 percentages marked on an actual curve transforms memorization into comprehension. The abstract statement “68% of values fall within one standard deviation” becomes concrete when you see the shaded region and its boundaries.
In professional contexts, bell curve visualizations support communication with non-technical audiences. Explaining that “our manufacturing process maintains tolerances within 0.5mm with 95% confidence” is clearer when accompanied by a curve showing where those boundaries fall. The visual transcends disciplinary jargon.
Research applications are equally important. Before applying parametric statistical tests that assume normality, researchers often plot their data against the expected bell curve. Deviations from the expected shape signal problems: skewness, outliers, or violations of normality assumptions that require different analytical approaches.
Common Misconceptions About Bell Curves
Despite their ubiquity in statistics education, several persistent misunderstandings surround bell curves.
Not all data is normally distributed. Many students assume that the bell curve is universal, but this is far from true. Income distributions are heavily right-skewed—most people earn modest amounts while a small number earn vastly more. Reaction times have a floor (you can’t react in negative time) and often show right skew. Count data, survival times, and proportions frequently follow entirely different distributions. The normal distribution is common, but it’s one pattern among many.
Real-world data rarely shows perfect symmetry. Even when data is approximately normal, you’ll almost never see a perfectly symmetrical bell curve in actual measurements. Sample variability, measurement error, and genuine population quirks introduce irregularities. The theoretical bell curve is an idealized model that real data approaches but rarely matches exactly.
Standard deviation is not a probability measure. A common error is treating standard deviation as if it directly tells you the likelihood of an event. It doesn’t. Standard deviation quantifies spread—how dispersed values are around the mean. Probability requires integrating the curve (calculating area) over a specific range. One standard deviation doesn’t mean “one unit of probability.”
Density and probability are distinct concepts. The height of the curve at a point (density) is not the probability of that exact value occurring. In continuous distributions, the probability of any single exact value is technically zero. Probabilities correspond to ranges (areas), not points. This distinction confuses many learners but is crucial for correct interpretation.
Understanding these limitations actually strengthens your grasp of when and how to use bell curves appropriately.
FAQs
A bell curve displays the probability distribution of a continuous variable that follows a normal distribution. The horizontal axis represents possible values, while the curve’s height at each point indicates the relative likelihood (density) of observing values in that region. The symmetrical shape shows that values near the mean are most common, with probability decreasing smoothly as you move toward extreme values in either direction.
Increasing the standard deviation makes the curve shorter and wider, spreading the data across a broader range. Decreasing it makes the curve taller and narrower, concentrating data closer to the mean. The total area under the curve always remains constant at 1, so greater width necessitates reduced height to maintain this property.
No. Normal distributions are common in nature and measurement processes, but many phenomena follow different patterns. Income, survival times, count data, and bounded variables (like percentages) often show skewness or other shapes. Always examine your actual data distribution before assuming normality.
A bell curve is the graphical visualization of a normal distribution. The normal distribution is the mathematical probability distribution defined by the Gaussian function. The terms are often used interchangeably, with “bell curve” emphasizing the visual shape and “normal distribution” emphasizing the mathematical properties.
The horizontal axis shows the variable’s possible values (often in units of standard deviations from the mean). The vertical axis shows probability density. To find the probability that a value falls within a certain range, you calculate the area under the curve between those two points on the horizontal axis. Common reference points are ±1σ, ±2σ, and ±3σ from the mean.
The generator creates a theoretical normal curve based on your inputs. You can use it to see what a normal distribution with your data’s mean and standard deviation would look like, which helps assess whether your actual data approximates normality. However, the curve itself always represents a perfect normal distribution, not your actual data’s potentially irregular shape.
